Side emitting fiber optics “Side Glow”

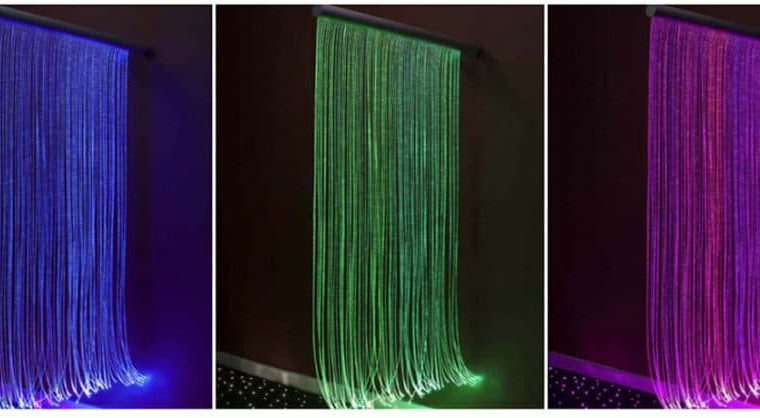

The optical fibers “Side-Glow” are used essentially for scenographic and / or decorative effects, due their particular characteristic of side light emission. The optical fibers “Side-Glow” are used to create curtains, chandeliers, leaving plenty of space for imagination and creativity in many different realizations.

GLASS FIBRE OPTICS “SIDE GLOW”

The glass fiber optics bunldes “Side-Glow” are composed by max 400 tails having an outer diameter of the sheath (transparent PVC) of 2.2 mm, with a useful diameter of the optical fiber of .3 mm for each single fiber optics tail (Size 1), with a maximum recommended length of 5 meters. Not require the use of terminals but only the common connector for connection to light source.

PMMA FIBER OPTICS“SIDE GLOW”

The pmma fiber optics bunldes “Side-Glow” are composed by max 260 tails having an outer diameter of the sheath (transparent PVC),of 3,0mm, with a useful diameter of the optical fiber of 1,7 mm, with a recommended maximum length of 10 mt. Not require the use of terminals but only the common connector for connection to light source.


CodeDescriptionInternal Diameter of the fiberExternal Diameter of the fiberMinimum radius of curvature
SIDE-GLOW-V “Side Glow” glass 1,3mm2,2mm 13mm
SIDE-GLOW-S “Side Glow” synthetich1,7mm2,7mm21mm
